Sale!

TSV 14G

Original price was: € 335.0.Current price is: € 235.0.

ALL in ONE:
4G OBDii gps tracker
+ SIM data and card for 130+ countries (one year subscription)
+ Professional application android/ios (one year subscription)

+ Configuation set up

100% Made in Europe

In cooperation with Teltonika®

- +
SKU: TSV 14G Category:

Stay Connected to Your Vehicle Anytime, Anywhere

Experience the most reliable and advanced solution to track your vehicle in all possible ways. Whether you’re managing a fleet of cars or just safeguarding your personal vehicle, this innovative tracking system provides you with the ultimate peace of mind. It is designed to help you monitor every detail of your vehicle’s whereabouts accurately and efficiently. Forget the stress of uncertainty—know exactly where your vehicle is at any given time.

Features That Put You in Control

Equipped with state-of-the-art technology, this tracking solution delivers real-time location updates, detailed route history, and instant notifications for unauthorized movements. The device is compact, unobtrusive, and easy to install, ensuring convenience from the moment you start using it. Additionally, advanced security features like geofencing let you define safe areas for your vehicle, triggering alerts whenever boundaries are crossed. The intuitive user interface further ensures a seamless experience, letting even first-time users manage vehicle monitoring without any hassle.

Built for Reliability and Efficiency

This vehicle tracking system is engineered with a focus on durability and accuracy. It utilizes robust GPS and cellular technology in order to provide real-time data with precision, even in remote locations. Designed for long-term performance, it ensures that you can depend on it in any situation—be it for personal security or business efficiency management. Moreover, the system integrates seamlessly with your smartphone or laptop, ensuring you’re always just a click away from your vehicle’s information.

Why Choose This Tracking Solution?

When it comes to monitoring your vehicle, trust matters. This solution stands out due to its unmatched quality, user-friendly design, and comprehensive features that truly cater to your needs. Say goodbye to worries, and hello to convenience and peace of mind. Track your vehicle smarter and more securely today.

Weight 30 g
Dimensions 24 × 18 × 4 cm
Certification & Approvals

Regulatory

CE/RED, UKCA, E-Mark, EAC, RoHS, REACH, SIRIM QAS, Anatel, SDPPI POSTEL

Data

HS CAN, MS CAN, SW CAN, K-line

Data reading

OEM Fuel level, odometer and up to 32 vehicle onboard parameters, supported OBD protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 14229 (UDS)

J2819 (VW TP2.0)

GNSS

Technology

GSM
2G bands

Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer

GPRS Multi-Slot Class 12 (up to 240 kbps)
Data support

SMS (text/data)

Power

Input voltage range

12 – 30 V DC with overvoltage protection
Back-up battery

45 mAh Li-Ion battery (0.167 Wh)
Power consumption

At 12V < 5 mA (Ultra Deep Sleep)

At 12V < 7 mA (Deep Sleep)

At 12V < 7 mA (Online Sleep)

At 12V < 8 mA (GPS Sleep)

At 12V < 28 mA (nominal)

Cellular

Technology LTE Cat 1, GSM
2G bands MeiG SLM320-PE2C: GSM: B2/B3/B5/B8
MeiG SLM320-L16A: GSM: B2/B3/B5/B8
4G bands MeiG SLM320-PE2C: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41
MeiG SLM320-L16A: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40
Data transfer
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Transmit power
Class 4 for GSM850/900: 23±2dBm
Class 1 for GSM1800/1900: 20±2dBm
Class 3 for LTE-TDD: 23±2.7dBm
Class 3 for LTE-FDD: 23±2.7dBm
Data support SMS (text/data)

Bluetooth® Technology

Specification

4.0 + LE
Supported peripherals

Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Physical specification

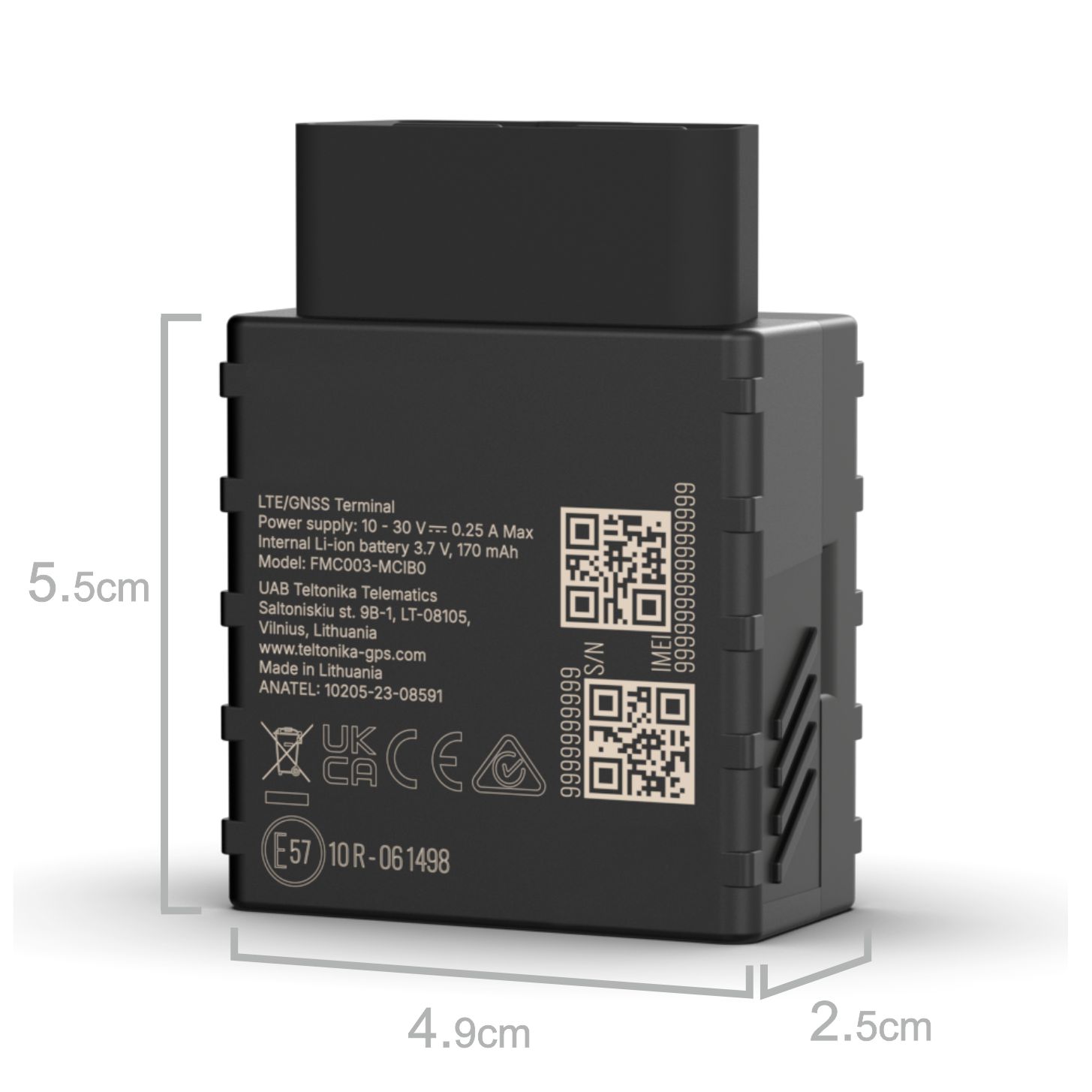

Dimensions

67,2 x 49,6 x 25 mm (L x W x H)
Weight

30 g

Operating environment

Operating temperature (without battery)

-40 °C to +85 °C
Storage temperature (without battery)

-40 °C to +85 °C
Operating humidity

5% to 95% non-condensing
Ingress Protection Rating

IP41
Battery charge temperature

0 °C to +45 °C
Battery discharge temperature

-20 °C to +60 °C
Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Interface

Connection

OBDII Socket
GNSS antenna

Internal High Gain
Cellular antenna

Internal High Gain
USB

2.0 Micro-USB
LED indication

2 status LED lights
SIM

Nano-SIM
Memory

128MB internal flash memory

Features

Sensors

Accelerometer
Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update

FOTA Web, FOTA, Teltonika Configurator (USB, Bluetoot® wireless technology)
SMS

Configuration, Events, Debug
GPRS commands

Configuration, Debug
Time Synchronization

GNSS, NITZ, NTP
Fuel monitoring

OBDII, OEM fuel level
Ignition detection

Accelerometer, External Power Voltage, Engine RPM
